Tracking and Fixing an Installer Bug

A little while back, a bug with the LVM encrypted install in Kali Linux 1.0.4 was reported in our bug tracker. This bug was high priority in our TODO as encrypted installs are an important feature in our industry so we wanted to squash this bug ASAP. This article will describe the process of debugging, identifying, and fixing this bug in Kali, and ultimately in Debian as well.

The bug itself was weird; installing Kali with the “LVM Encrypted” option would result in a failed boot once the installation was done:

The work-around suggested in the bug report indicated that the /etc/crypttab file was empty. By manually remounting the encrypted partition, repopulating it with the required parameters, and then updating the initramfs, the machine would boot successfully into the encrypted partition again. Most definately annoying and far from practical.

Now with the problem well defined, the solution seemed simple. Something was probably wrong with the way /etc/crypttab gets updated during the installation process. Our next step was to investigate the scripts that are responsible for this update and see if there are any bugs in the file update process. But how would you locate the exact script responsible for this update and how could we figure out what package it lives in?

To our rescue comes DebianInstaller. Using this set of scripts, we checked out the whole DebianInstaller source tree. This would allow us to search for the scripts that affect /etc/crypttab with much greater ease:

root@kalima:~# svn co svn:// debian-installer
root@kalima:~# cd debian-installer
root@kalima:~/debian-installer# scripts/git-setup
root@kalima:~/debian-installer# mr -p checkout

Once all the repositories had been checked out, we could simply grep for any files that reference the /etc/crypttab file as follows:

root@kalima:~/debian-installer# grep -r '/etc/crypttab' * |grep -v ^manual
packages/partman-crypto/finish.d/crypto_config:# dm-crypt: creates /etc/crypttab entries
packages/partman-crypto/finish.d/crypto_config: echo "$target $source $keyfile $opts" >> /target/etc/crypttab

We see above that it’s the “crypto_config” script that writes to /etc/crypttab, which is located in the partman-crypto package.

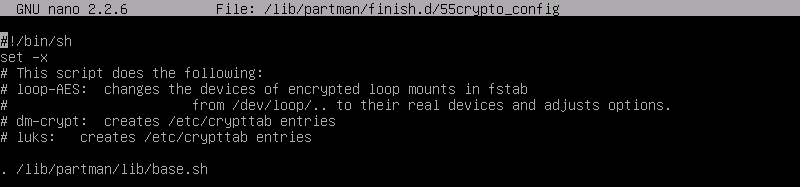

Ideally, we would like to debug this script and see where the problem is, but how would you do this in a live installation media? The answer is relatively simple - we just had to pop open a command prompt during the installation process. The trick is to invoke our debugging shell (by pressing CTRL+ALT+F2) during the right stage of the installation - in our case we needed to interrupt the installer before the crypto_config script was run but after the partman-crypto udeb was installed, so the beginning of the partitioning process would be a good spot. We proceeded to edit the /lib/partman/finish.d/55_crypto_config and added “set -x” at the start of the script:

We then let the installer do its thing and just before the installation completed, we took a peek at /var/log/syslog in another shell. To our surprise, we saw that the /etc/crypttab file *was* being updated, contrary to our initial beliefs, as can be seen in the syslog of the installation. WTH:

Aug 28 21:57:42 main-menu[954]: (process:9810): crypttab_add_entry
Aug 28 21:57:42 main-menu[954]: (process:9810): /dev/sda5
Aug 28 21:57:42 main-menu[954]: (process:9810): /var/lib/partman/devices/=dev=sda/256901120-160041009151
Aug 28 21:57:42 main-menu[954]: (process:9810): /dev/mapper/sda5_crypt
Aug 28 21:57:42 main-menu[954]: (process:9810): echo
Aug 28 21:57:42 main-menu[954]: (process:9810): sda5_crypt UUID=6250dbca-648b-4848-9132-cfa900ab5874 none luks

This is where we started scratching our heads. If the problem was not in the writing of this file (as we expected), then why was there an empty /etc/crypttab file after the installation? Perhaps the problem was not in partman-crypto after all, but in how live-build generates our ISOs? We tested this theory of ours by using a Kali mini installation ISO (not built via live-build) and noticed that the LVM encrypted installs were working fine when using that installation media.

We know that the live-installer uses tar to copy the whole live filesystem into a mounted /target directory and it assumes that the filesystems are empty, which is mostly true since they were just created by partman. This means that any pre-existing file can be overwritten if they are also in the live image, which was happening to /etc/crypttab in this case.

Further examination revealed that the problem was in live-installer, whereby it overwrites the generated /etc/crypttab. The live-installer already has some provisions to not overwrite /etc/fstab, so it’s just a matter of generalizing that rule and including the /etc/crypttab file as well:

$ diff --git a/debian/live-installer.postinst b/debian/live-installer.postinst
index 9a39d8d..bc40b84 100644 (file)
--- a/debian/live-installer.postinst
+++ b/debian/live-installer.postinst
@@ -8,6 +8,8 @@ db_capb backup
# Architecture and OS detection
ARCH=`udpkg --print-architecture`
OS=`udpkg --print-os`
+# Files that must not be overwritten by copy of live system
+FILES_TO_PRESERVE="/etc/fstab /etc/crypttab"

@@ -34,11 +36,12 @@ install_live_system () {
# symlinks there.
rmdir /target/var/lock /target/var/run 2>/dev/null || true

- # Backup pre-existing /etc/fstab as it will be overwritten by the
- # copy of the live system
- if [ -e /target/etc/fstab ] && [ ! -e /target/etc/ ]; then
- mv /target/etc/fstab /target/etc/
- fi
+ # Backup files that should not be overwritten by the copy
+ for f in $FILES_TO_PRESERVE; do
+ if [ -e /target$f ] && [ ! -e /target/${f}.live-installer ]; then
+ mv /target$f /target${f}.live-installer
+ fi
+ done

for place in $PLACES; do
[ ! -e $place ] && continue
@@ -83,10 +86,12 @@ install_live_system () {
eval ${SUPPORT}_teardown

- # Restore the fstab file created by d-i
- if [ -e /target/etc/ ]; then
- mv /target/etc/ /target/etc/fstab
- fi
+ # Restore important configuration files
+ for f in $FILES_TO_PRESERVE; do
+ if [ -e /target${f}.live-installer ]; then
+ mv /target${f}.live-installer /target$f
+ fi
+ done

if [ ${PLACE_FOUND} -eq 0 ]; then
error "Could not find any live images"

The above patch fixed the issue for us, allowing encrypted LVM installs to complete and boot successfully. As with any Debian bugs we encounter, we send patches back to Debian to improve the distribution we build upon. A fix for this installer bug will come out in our next point release (1.0.5) next week. People generating their own ISO images though live-build will automatically receive the fixed package.
